8.4 Capacitor with a Dielectric

Learning Objectives

By the end of this section, you will be able to:

Describe the effects a dielectric in a capacitor has on capacitance and other properties
Calculate the capacitance of a capacitor containing a dielectric

As we discussed earlier, an insulating material placed between the plates of a capacitor is called a dielectric. Inserting a dielectric between the plates of a capacitor affects its capacitance. To see why, let’s consider an experiment described in Figure 8.17. Initially, a capacitor with capacitance $C_{0}$ when there is air between its plates is charged by a battery to voltage $V_{0}$ . When the capacitor is fully charged, the battery is disconnected. A charge $Q_{0}$ then resides on the plates, and the potential difference between the plates is measured to be $V_{0}$ . Now, suppose we insert a dielectric that totally fills the gap between the plates. If we monitor the voltage, we find that the voltmeter reading has dropped to a smaller value V. We write this new voltage value as a fraction of the original voltage $V_{0}$ , with a positive number $κ$ , $κ > 1$ :

V = \frac{1}{κ} V_{0} .

The constant $κ$ in this equation is called the dielectric constant of the material between the plates, and its value is characteristic for the material. A detailed explanation for why the dielectric reduces the voltage is given in the next section. Different materials have different dielectric constants (a table of values for typical materials is provided in the next section). Once the battery becomes disconnected, there is no path for a charge to flow to the battery from the capacitor plates. Hence, the insertion of the dielectric has no effect on the charge on the plate, which remains at a value of $Q_{0}$ . Therefore, we find that the capacitance of the capacitor with a dielectric is

C = \frac{Q_{0}}{V} = \frac{Q_{0}}{V_{0} / κ} = κ \frac{Q_{0}}{V_{0}} = κ C_{0} .

8.11

This equation tells us that the capacitance $C_{0}$ of an empty (vacuum) capacitor can be increased by a factor of $κ$ when we insert a dielectric material to completely fill the space between its plates. Note that Equation 8.11 can also be used for an empty capacitor by setting $κ = 1$ . In other words, we can say that the dielectric constant of the vacuum is 1, which is a reference value.

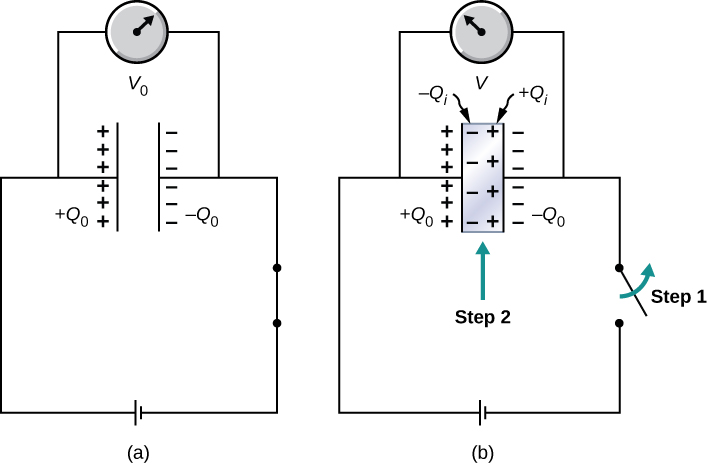

Figure a shows a capacitor connected in series with a switch and a battery. The switched is closed and there is a voltmeter across the capacitor, showing the reading V0. The plates of the capacitor have charge +Q0 and –Q0. Figure b shows the same circuit, with the switch open. This is labeled Step 1. The space between the plates of the capacitor is grey colored, indicating the presence of a dielectric. This is labeled Step 2. The positively charged plate has negative signs on the inside, labeled –Qi. The negatively charged plate has positive signs on the inside, labeled plus Qi. The voltmeter shows the reading V, which is less than V0.

Figure 8.17 (a) When fully charged, a vacuum capacitor has a voltage

V_{0}

and charge

Q_{0}

(the charges remain on plate’s inner surfaces; the schematic indicates the sign of charge on each plate). (b) In step 1, the battery is disconnected. Then, in step 2, a dielectric (that is electrically neutral) is inserted into the charged capacitor. When the voltage across the capacitor is now measured, it is found that the voltage value has decreased to

V = V_{0} / κ

. The schematic indicates the sign of the induced charge that is now present on the surfaces of the dielectric material between the plates.

The principle expressed by Equation 8.11 is widely used in the construction industry (Figure 8.18). Metal plates in an electronic stud finder act effectively as a capacitor. You place a stud finder with its flat side on the wall and move it continually in the horizontal direction. When the finder moves over a wooden stud, the capacitance of its plates changes, because wood has a different dielectric constant than a gypsum wall. This change triggers a signal in a circuit, and thus the stud is detected.

Figure a is a photograph of a person’s hand holding an electronic stud finder against a wall. Figure b shows the cross section of a wall with a wooden stud behind it. The electronic stud finder is being slid across the wall on the other side. It has capacitor plates that touch the wall.

Figure 8.18 An electronic stud finder is used to detect wooden studs behind drywall. (credit top: modification of work by Jane Whitney)

The electrical energy stored by a capacitor is also affected by the presence of a dielectric. When the energy stored in an empty capacitor is $U_{0}$ , the energy U stored in a capacitor with a dielectric is smaller by a factor of $κ$ ,

U = \frac{1}{2} \frac{Q^{2}}{C} = \frac{1}{2} \frac{Q_{0}^{2}}{κ C_{0}} = \frac{1}{κ} U_{0} .

8.12

As a dielectric material sample is brought near an empty charged capacitor, the sample reacts to the electrical field of the charges on the capacitor plates. Just as we learned in Electric Charges and Fields on electrostatics, there will be the induced charges on the surface of the sample; however, they are not free charges like in a conductor, because a perfect insulator does not have freely moving charges. These induced charges on the dielectric surface are of an opposite sign to the free charges on the plates of the capacitor, and so they are attracted by the free charges on the plates. Consequently, the dielectric is “pulled” into the gap, and the work to polarize the dielectric material between the plates is done at the expense of the stored electrical energy, which is reduced, in accordance with Equation 8.12.

Example 8.10

Inserting a Dielectric into an Isolated Capacitor

An empty 20.0-pF capacitor is charged to a potential difference of 40.0 V. The charging battery is then disconnected, and a piece of Teflon™ with a dielectric constant of 2.1 is inserted to completely fill the space between the capacitor plates (see Figure 8.17). What are the values of (a) the capacitance, (b) the charge of the plate, (c) the potential difference between the plates, and (d) the energy stored in the capacitor with and without dielectric?

Strategy

We identify the original capacitance

C_{0} = 20.0 pF

and the original potential difference

V_{0} = 40.0 V

between the plates. We combine Equation 8.11 with other relations involving capacitance and substitute.

Solution

The capacitance increases to
$C = κ C_{0} = 2.1 (20.0 pF) = 42.0 pF .$
Without dielectric, the charge on the plates is
$Q_{0} = C_{0} V_{0} = (20.0 pF) (40.0 V) = 0.8 nC .$
Since the battery is disconnected before the dielectric is inserted, the plate charge is unaffected by the dielectric and remains at 0.8 nC.
With the dielectric, the potential difference becomes
$V = \frac{1}{κ} V_{0} = \frac{1}{2.1} 40.0 V = 19.0 V .$
The stored energy without the dielectric is
$U_{0} = \frac{1}{2} C_{0} V_{0}^{2} = \frac{1}{2} (20.0 pF) {(40.0 V)}^{2} = 16.0 nJ .$
With the dielectric inserted, we use Equation 8.12 to find that the stored energy decreases to
$U = \frac{1}{κ} U_{0} = \frac{1}{2.1} 16.0 nJ = 7.6 nJ .$

Significance

Notice that the effect of a dielectric on the capacitance of a capacitor is a drastic increase of its capacitance. This effect is far more profound than a mere change in the geometry of a capacitor.

Check Your Understanding 8.7

When a dielectric is inserted into an isolated and charged capacitor, the stored energy decreases to 33% of its original value. (a) What is the dielectric constant? (b) How does the capacitance change?
