15.5 Resonance in an AC Circuit

In the RLC series circuit of Figure 15.11, the current amplitude is, from Equation 15.10,

If we can vary the frequency of the ac generator while keeping the amplitude of its output voltage constant, then the current changes accordingly. A plot of $I_0$ versus $\text{ω}$ is shown in Figure 15.17.

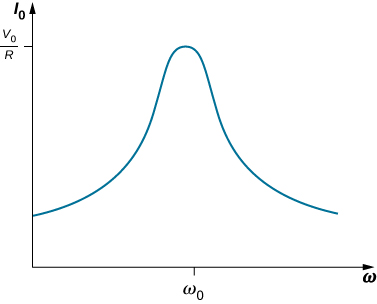

Figure 15.17 At an RLC circuit’s resonant frequency, ${\text{ω}}_0=\sqrt{1\text{/}LC},$ the current amplitude is at its maximum value.

In Oscillations, we encountered a similar graph where the amplitude of a damped harmonic oscillator was plotted against the angular frequency of a sinusoidal driving force (see Forced Oscillations). This similarity is more than just a coincidence, as shown earlier by the application of Kirchhoff’s loop rule to the circuit of Figure 15.11. This yields

or

where we substituted dq(t)/dt for i(t). A comparison of Equation 15.16 and, from Oscillations, Damped Oscillations for damped harmonic motion clearly demonstrates that the driven RLC series circuit is the electrical analog of the driven damped harmonic oscillator.

The resonant frequency $f_0$ of the RLC circuit is the frequency at which the amplitude of the current is a maximum and the circuit would oscillate if not driven by a voltage source. By inspection, this corresponds to the angular frequency ${\text{ω}}_0=2\pi f_0$ at which the impedance Z in Equation 15.15 is a minimum, or when

and

This is the resonant angular frequency of the circuit. Substituting ${\text{ω}}_0$ into Equation 15.9, Equation 15.10, and Equation 15.11, we find that at resonance,

Therefore, at resonance, an RLC circuit is purely resistive, with the applied emf and current in phase.

What happens to the power at resonance? Equation 15.14 tells us how the average power transferred from an ac generator to the RLC combination varies with frequency. In addition, $P_{\text{ave}}$ reaches a maximum when Z, which depends on the frequency, is a minimum, that is, when $X_L=X_C\text{and}Z=R.$ Thus, at resonance, the average power output of the source in an RLC series circuit is a maximum. From Equation 15.14, this maximum is $V_{\text{rms}}^2\text{/}R.$

Figure 15.18 is a typical plot of $P_{\text{ave}}$ versus $\text{ω}$ in the region of maximum power output. The bandwidth $\text{Δ}\text{ω}$ of the resonance peak is defined as the range of angular frequencies $\text{ω}$ over which the average power $P_{\text{ave}}$ is greater than one-half the maximum value of $P_{\text{ave}}.$ The sharpness of the peak is described by a dimensionless quantity known as the quality factor Q of the circuit. By definition,

where ${\text{ω}}_0$ is the resonant angular frequency. A high Q indicates a sharp resonance peak. We can give Q in terms of the circuit parameters as

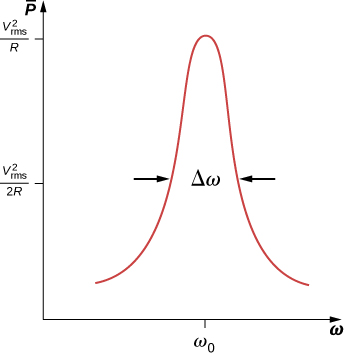

Figure 15.18 Like the current, the average power transferred from an ac generator to an RLC circuit peaks at the resonant frequency.

Resonant circuits are commonly used to pass or reject selected frequency ranges. This is done by adjusting the value of one of the elements and hence “tuning” the circuit to a particular resonant frequency. For example, in radios, the receiver is tuned to the desired station by adjusting the resonant frequency of its circuitry to match the frequency of the station. If the tuning circuit has a high Q, it will have a small bandwidth, so signals from other stations at frequencies even slightly different from the resonant frequency encounter a high impedance and are not passed by the circuit. Cell phones work in a similar fashion, communicating with signals of around 1 GHz that are tuned by an inductor-capacitor circuit. One of the most common applications of capacitors is their use in ac-timing circuits, based on attaining a resonant frequency. A metal detector also uses a shift in resonance frequency in detecting metals (Figure 15.19).

Figure 15.19 When a metal detector comes near a piece of metal, the self-inductance of one of its coils changes. This causes a shift in the resonant frequency of a circuit containing the coil. That shift is detected by the circuitry and transmitted to the diver by means of the headphones. (credit: modification of work by Eric Lippmann, U.S. Navy)
