10.3 Radioactive Decay

Learning Objectives

By the end of this section, you will be able to:

Describe the decay of a radioactive substance in terms of its decay constant and half-life
Use the radioactive decay law to estimate the age of a substance
Explain the natural processes that allow the dating of living tissue using $^{14} C$

In 1896, Antoine Becquerel discovered that a uranium-rich rock emits invisible rays that can darken a photographic plate in an enclosed container. Scientists offer three arguments for the nuclear origin of these rays. First, the effects of the radiation do not vary with chemical state; that is, whether the emitting material is in the form of an element or compound. Second, the radiation does not vary with changes in temperature or pressure—both factors that in sufficient degree can affect electrons in an atom. Third, the very large energy of the invisible rays (up to hundreds of eV) is not consistent with atomic electron transitions (only a few eV). Today, this radiation is explained by the conversion of mass into energy deep within the nucleus of an atom. The spontaneous emission of radiation from nuclei is called nuclear radioactivity (Figure 10.8).

A yellow triangle with a black outline, enclosing a fan shaped structure is shown. The “fan” is black and has three blades.

Figure 10.8 The international ionizing radiation symbol is universally recognized as the warning symbol for nuclear radiation.

Radioactive Decay Law

When an individual nucleus transforms into another with the emission of radiation, the nucleus is said to decay. Radioactive decay occurs for all nuclei with $Z > 82,$ and also for some unstable isotopes with $Z < 83 .$ The decay rate is proportional to the number of original (undecayed) nuclei N in a substance. The number of nuclei lost to decay, $− d N$ in time interval dt, is written

- \frac{d N}{d t} = λ N

10.7

where $λ$ is called the decay constant. (The minus sign indicates the number of original nuclei decreases over time.) In other words, the more nuclei available to decay, the more that do decay (in time dt). This equation can be rewritten as

\frac{d N}{N} = − λ d t .

10.8

Integrating both sides of the equation, and defining $N_{0}$ to be the number of nuclei at $t = 0$ , we obtain

\int_{N_{0}}^{N} \frac{d N^{'}}{N} = − \int_{0}^{t} λ d t^{'} .

10.9

This gives us

ln \frac{N}{N_{0}} = − λ t .

10.10

Taking the left and right sides of the equation as a power of e, we have the radioactive decay law.

Radioactive Decay Law

The total number N of radioactive nuclei remaining after time t is

N = N_{0} e^{− λ t}

10.11

where $λ$ is the decay constant for the particular nucleus.

The total number of nuclei drops very rapidly at first, and then more slowly (Figure 10.9).

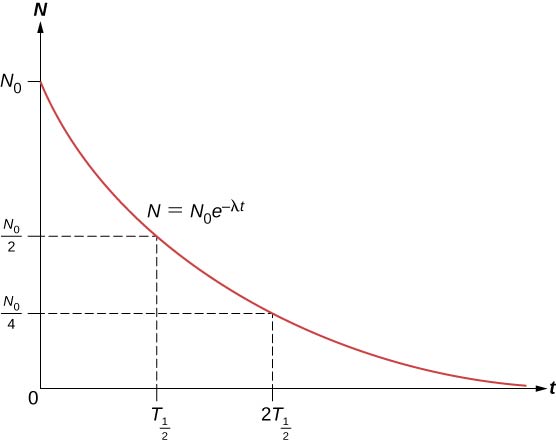

A graph of N versus t is shown. It is labeled N equal to N subscript 0 e to the power minus lambda t. The value of N is maximum, N subscript 0, at t =0 and it reduces with time till it reaches 0. At t = T subscript half, N = N subscript 0 by 2 and at t = 2T subscript half, N = N subscript 0 by 4.

Figure 10.9 A plot of the radioactive decay law demonstrates that the number of nuclei remaining in a decay sample drops dramatically during the first moments of decay.

The half-life $(T_{1 / 2})$ of a radioactive substance is defined as the time for half of the original nuclei to decay (or the time at which half of the original nuclei remain). The half-lives of unstable isotopes are shown in the chart of nuclides in Figure 10.4. The number of radioactive nuclei remaining after an integer (n) number of half-lives is therefore

N = \frac{N_{0}}{2^{n}}

10.12

If the decay constant ( $λ$ ) is large, the half-life is small, and vice versa. To determine the relationship between these quantities, note that when $t = T_{1 / 2}$ , then $N = N_{0} / 2$ . Thus, Equation 10.10 can be rewritten as

\frac{N_{0}}{2} = N_{0} e^{− λ T_{1 / 2}} .

10.13

Dividing both sides by $N_{0}$ and taking the natural logarithm yields

ln \frac{1}{2} = ln e^{− λ T_{1 / 2}}

10.14

which reduces to

λ = \frac{0.693}{T_{1 / 2}} .

10.15

Thus, if we know the half-life T_1/2 of a radioactive substance, we can find its decay constant. The lifetime $\bar{T}$ of a radioactive substance is defined as the average amount of time that a nucleus exists before decaying. The lifetime of a substance is just the reciprocal of the decay constant, written as

\bar{T} = \frac{1}{λ} .

10.16

The activity A is defined as the magnitude of the decay rate, or

A = - \frac{d N}{d t} = λ N = λ N_{0} e^{− λ t} .

10.17

The infinitesimal change dN in the time interval dt is negative because the number of parent (undecayed) particles is decreasing, so the activity (A) is positive. Defining the initial activity as $A_{0} = λ N_{0}$ , we have

A = A_{0} e^{− λ t} .

10.18

Thus, the activity A of a radioactive substance decreases exponentially with time (Figure 10.10).

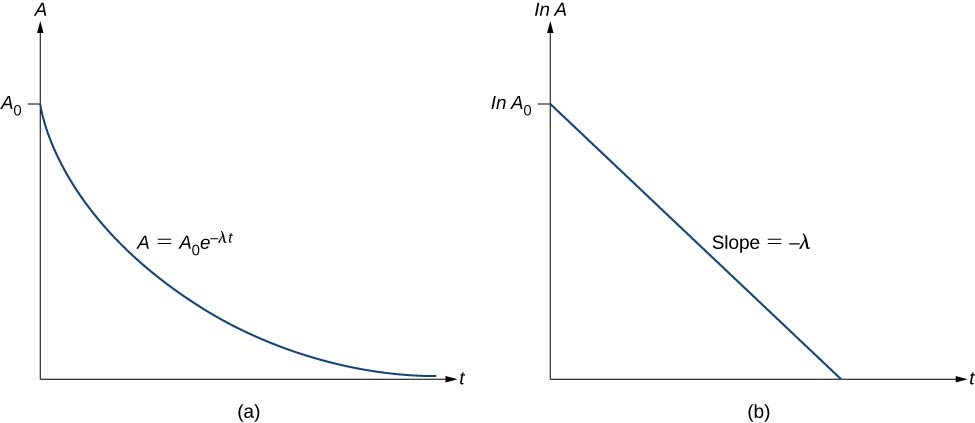

Figure a shows a graph of A versus t. It starts at point A subscript 0 and reduces with time. The rate of reduction decreases slowly till A is very close to 0, making a curved plot on the graph. The plot is labeled A = A subscript 0 e to the power minus lambda t. Figure b shows a graph of ln A versus t. It starts at ln A subscript 0 and slopes downwards in a straight line. The slope of the line is labeled minus lambda t.

Figure 10.10 (a) A plot of the activity as a function of time (b) If we measure the activity at different times, we can plot ln A versus t, and obtain a straight line.

Example 10.4

Decay Constant and Activity of Strontium-90

The half-life of strontium-90,

_{38}^{90} Sr

, is 28.8 y. Find (a) its decay constant and (b) the initial activity of 1.00 g of the material.

Strategy

We can find the decay constant directly from Equation 10.15. To determine the activity, we first need to find the number of nuclei present.

Solution

The decay constant is found to be
$λ = \frac{0.693}{T_{1 / 2}} = (\frac{0.693}{T_{1 / 2}}) (\frac{1 yr}{3.16 \times 10^{7} s}) = 7.61 \times 10^{−10} s^{− 1} .$
The atomic mass of $_{38}^{90} S r$ is 89.91 g. Using Avogadro’s number $N_{A} = 6.022 \times 10^{23}$ atoms/mol, we find the initial number of nuclei in 1.00 g of the material:
$N_{0} = \frac{1.00 g}{89.91 g} (N_{A}) = 6.70 \times 10^{21} nuclei .$
From this, we find that the activity $A_{0}$ at $t = 0$ for 1.00 g of strontium-90 is
$\begin{matrix} A_{0} & = λ N_{0} \\ = (7.61 \times 10^{−10} s^{−1}) (6.70 \times 10^{21} nuclei) \\ = 5.10 \times 10^{12} decays/s . \end{matrix}$

Expressing $λ$ in terms of the half-life of the substance, we get

A = A_{0} e^{− (0.693 / T_{1 / 2}) T_{1 / 2}} = A_{0} e^{−0.693} = A_{0} / 2 .

10.19

Therefore, the activity is halved after one half-life. We can determine the decay constant $λ$ by measuring the activity as a function of time. Taking the natural logarithm of the left and right sides of Equation 10.17, we get

ln A = − λ t + ln A_{0} .

10.20

This equation follows the linear form $y = m x + b$ . If we plot ln A versus t, we expect a straight line with slope $− λ$ and y-intercept $ln A_{0}$ (Figure 10.10(b)). Activity A is expressed in units of becquerels (Bq), where one $1 Bq = 1 decay per second$ . This quantity can also be expressed in decays per minute or decays per year. One of the most common units for activity is the curie (Ci), defined to be the activity of 1 g of $^{226} Ra$ . The relationship between the Bq and Ci is

1 Ci = 3.70 \times 10^{10} Bq .

Example 10.5

What is $^{14} C$ Activity in Living Tissue?

Approximately

20 %

of the human body by mass is carbon. Calculate the activity due to

^{14} C

in 1.00 kg of carbon found in a living organism. Express the activity in units of Bq and Ci.

Strategy

The activity of

^{14} C

is determined using the equation

A_{0} = λ N_{0}

, where λ is the decay constant and

N_{0}

is the number of radioactive nuclei. The number of

^{14} C

nuclei in a 1.00-kg sample is determined in two steps. First, we determine the number of

^{12} C

nuclei using the concept of a mole. Second, we multiply this value by

1.3 \times 10^{−12}

(the known abundance of

^{14} C

in a carbon sample from a living organism) to determine the number of

^{14} C

nuclei in a living organism. The decay constant is determined from the known half-life of

^{14} C

(available from Figure 10.4).

Solution

One mole of carbon has a mass of 12.0 g, since it is nearly pure

^{12} C

. Thus, the number of carbon nuclei in a kilogram is

N (^{12} C) = \frac{6.02 \times 10^{23} {mol}^{−1}}{12.0 g/mol} \times (1000 g) = 5.02 \times 10^{25} .

The number of $^{14} C$ nuclei in 1 kg of carbon is therefore

N (^{14} C) = (5.02 \times 10^{25}) (1.3 \times 10^{−12}) = 6.52 \times 10^{13} .

Now we can find the activity A by using the equation $A = \frac{0.693 N}{t_{1 / 2}} .$ Entering known values gives us

A = \frac{0.693 (6.52 \times 10^{13})}{5730 y} = 7.89 \times 10^{9} y^{− 1}

or $7.89 \times 10^{9}$ decays per year. To convert this to the unit Bq, we simply convert years to seconds. Thus,

A = (7.89 \times 10^{9} y^{− 1}) \frac{1.00 y}{3.16 \times 10^{7} s} = 250 Bq,

or 250 decays per second. To express A in curies, we use the definition of a curie,

A = \frac{250 Bq}{3.7 \times 10^{10} Bq/Ci} = 6.76 \times 10^{−9} Ci .

Thus,

A = 6.76 nCi .

Significance

Approximately

20 %

of the human body by weight is carbon. Hundreds of

^{14} C

decays take place in the human body every second. Carbon-14 and other naturally occurring radioactive substances in the body compose a person’s background exposure to nuclear radiation. As we will see later in this chapter, this activity level is well below the maximum recommended dosages.

Radioactive Dating

Radioactive dating is a technique that uses naturally occurring radioactivity to determine the age of a material, such as a rock or an ancient artifact. The basic approach is to estimate the original number of nuclei in a material and the present number of nuclei in the material (after decay), and then use the known value of the decay constant $λ$ and Equation 10.10 to calculate the total time of the decay, t.

An important method of radioactive dating is carbon-14 dating. Carbon-14 nuclei are produced when high-energy solar radiation strikes $^{14} N$ nuclei in the upper atmosphere and subsequently decay with a half-life of 5730 years. Radioactive carbon has the same chemistry as stable carbon, so it combines with the ecosphere and eventually becomes part of every living organism. Carbon-14 has an abundance of 1.3 parts per trillion of normal carbon. Therefore, if you know the number of carbon nuclei in an object, you multiply that number by $1.3 \times 10^{−12}$ to find the number of $^{14} C$ nuclei in that object. When an organism dies, carbon exchange with the environment ceases, and $^{14} C$ is not replenished as it decays.

By comparing the abundance of $^{14} C$ in an artifact, such as mummy wrappings, with the normal abundance in living tissue, it is possible to determine the mummy’s age (or the time since the person’s death). Carbon-14 dating can be used for biological tissues as old as 50,000 years, but is generally most accurate for younger samples, since the abundance of $^{14} C$ nuclei in them is greater. Very old biological materials contain no $^{14} C$ at all. The validity of carbon dating can be checked by other means, such as by historical knowledge or by tree-ring counting.

Example 10.6

An Ancient Burial Cave

In an ancient burial cave, your team of archaeologists discovers ancient wood furniture. Only

80 %

of the original

^{14} C

remains in the wood. How old is the furniture?

Strategy

The problem statement implies that

N / N_{0} = 0.80 .

Therefore, the equation

N = N_{0} e^{− λ t}

can be used to find the product,

λ t

. We know the half-life of

^{14} C

is 5730 y, so we also know the decay constant, and therefore the total decay time t.

Solution

Solving the equation

N = N_{0} e^{− λ t}

for

N / N_{0}

gives us

\frac{N}{N_{0}} = e^{− λ t} .

Thus,

0.80 = e^{− λ t} .

Taking the natural logarithm of both sides of the equation yields

ln 0.80 = - λ t,

so that

−0.223 = − λ t .

Rearranging the equation to isolate t gives us

t = \frac{0.223}{λ},

where

λ = \frac{0.693}{t_{1 / 2}} = \frac{0.693}{5730 y} .

Combining this information yields

t = \frac{0.223}{(\frac{0.693}{5730 y})} = 1844 y .

Significance

The furniture is almost 2000 years old—an impressive discovery. The typical uncertainty on carbon-14 dating is about

5 %

, so the furniture is anywhere between 1750 and 1950 years old. This date range must be confirmed by other evidence, such as historical records.

Check Your Understanding 10.3

A radioactive nuclide has a high decay rate. What does this mean for its half-life and activity?

Interactive

Visit the Radioactive Dating Game to learn about the types of radiometric dating and try your hand at dating some ancient objects.
